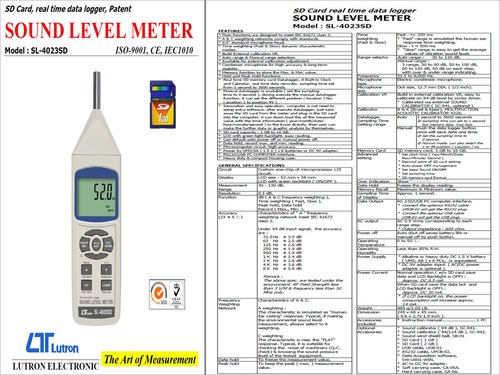

Sound Level Meter With SD Card

Sound Level Meter With SD Card
Sound Level Meter With SD Card
Product Code : SL 4023 SD
Brand Name : Lutron
Product Description

Backed with rich experience and knowledge in this domain, we are recognized as one of the most profound supplier and distributor of Sound Level Meter With SD Card.  The meters offered by us are widely appreciated for the matchless features such as inbuilt SD card to keep the records of data, condenser microphone for impeccable accuracy and easy readability on LCD with green back light. Sound Level Meter With SD Card offered by us is highly used in industrial, occupational and environmental applications for measuring efficiency of sonic waves.




 Further Details:


You are not required to have the software and cable for the instrument you can directly log the data in SD card and later on can take the backup from SD Card.


  • Main functions are designed to meet IEC 61672 class 2.

  • A & C weighting networks comply with standards.

  • 0.5" standard microphone head.

  • Time weighting (Fast & Slow) dynamic characteristic modes.

  • Build External calibration VR.

  • Auto range & Manual range selection.

  • Available for external calibration adjustment.

  • Memory function to store the Max. & Min. value.

  • Hold and Peak Hold functions.

  • Real time SD memory card Datalogger, it Built-in Clock and Calendar, real time data recorder, sampling time set from 1 second to 3600 seconds.

  • Manual datalogger is available ( set the sampling time to 0 second ), during execute the manual datalogger function, it can set the different position ( location ) No. 1-99

  • Innovation and easy operation, computer is not need to setup extra software, after execute datalogger, just take away the SD card from the meter and plug in the SD card into the computer, it can download the all the measured value with the time information (year /month /date /hour /minute /second ) to the Excel directly, then user can make the further data or graphic analysis by themselves.

  • SD card capacity: 1 GB to 16 GB.

  • Can default auto power off or manual power off.

  • Data hold, record max. and min. reading.

  • Microcomputer circuit, high accuracy.

  • Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter.

  • RS232/USB PC COMPUTER interface.

  • Heavy duty & compact housing case
